Axon-R

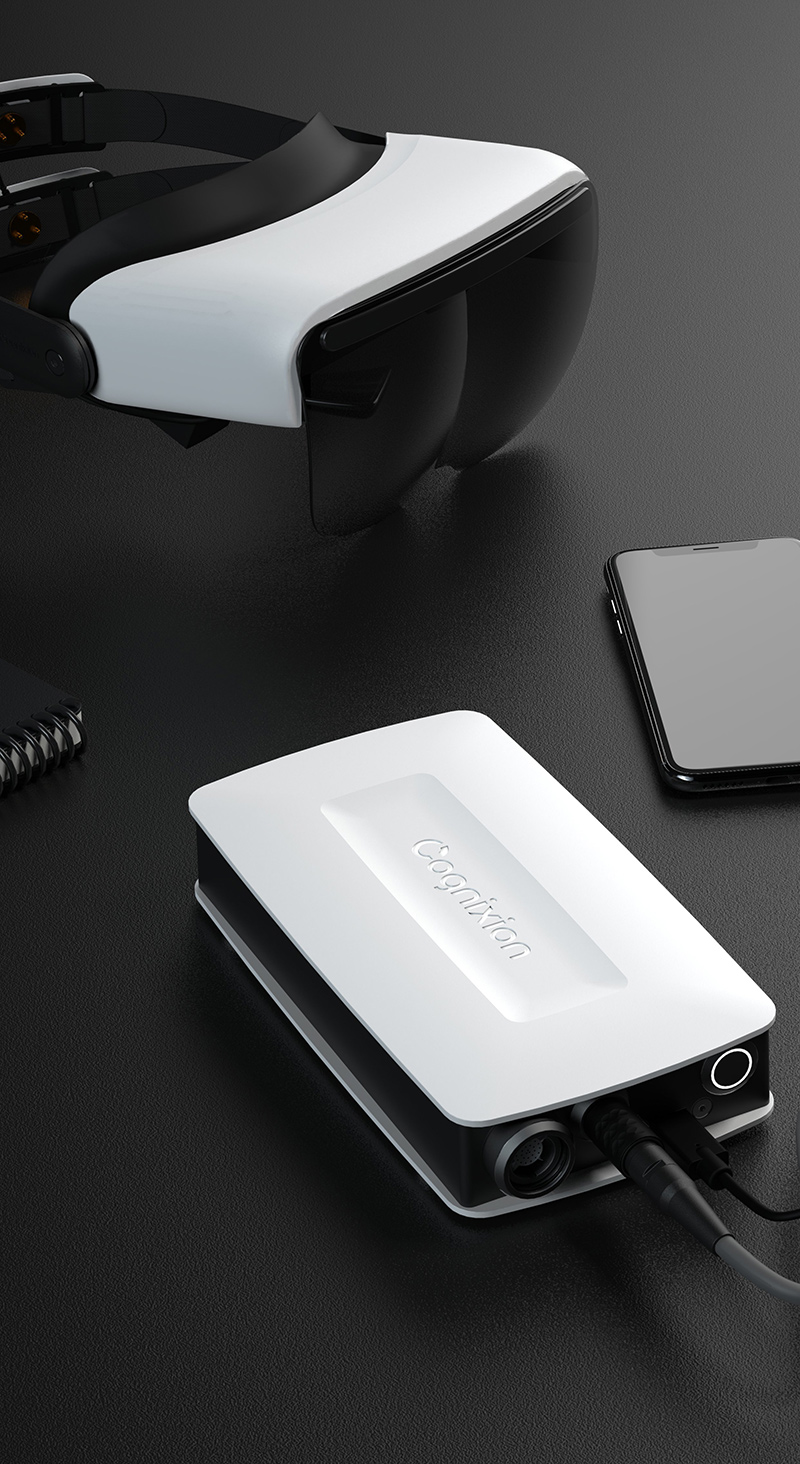

Introducing a breakthrough brain computer interface platform for researchers that combines augmented reality, EEG, and artificial intelligence in a novel, self-contained headset.

The Cognixion ONE™ Axon-R enables precise measurement and modulation of brain activity through visual stimuli, biofeedback, and neurofeedback. This wearable device offers up to 16 channels of research-quality physiological data and an integrated steady state visually evoked potential classifier.

Researchers equipped with the Axon-R can expand beyond the confines of standard laboratories, engaging in immersive and interactive studies that leverage multi-modal interaction, augmented reality, and brain sensing in just about any setting, indoors and outdoors.



DendriteTM Cable
headset_dendrite_1_3_comp

Axon-R is the All in ONE Neural Hub for XR

Immersive Neurophysiology
The only purpose-built, truly integrated BCI + AR device with a unique on-device SEP classifier system (Sensory Evoked Potentials).

Untethered Versatility
Wearable and fully portable form factor allows for infield and diverse environment studies - Indoors and Outdoors.

Multimodal Sensor Fusion
6+2 EEG Sensors on Occipital and Occipital-Parietal, plus Din 8 channel ExG cable for diverse placement and use in full central and peripheral nervous system biosensor fusion (EEG, ECG, EMG, EOG).

LSL Data Streaming
Offers comprehensive data streams over WiFi for seamless analysis across 16 channels of Cognixion sensor data at 2kHz samples per second per channel (24bit). This also enables sensor fusion with data streams from other devices including wearable and implanted sensors.

No-Code SDK for Non-Technical People
Cognixion® BCI Studio™ enables easy rapid AR scene and app development and integration of neural data without deep programming knowledge.

Robust Software Support
Cognixion provides Python, Intheon, and AcqKnowledge, as well as Unity support for developing custom AR applications that integrate whole-body neural data. Use it for a wide array of use cases - consumer to medical to defense.

Medical-Grade System and Components
Research-backed medical-grade components designed and tested for safety, biocompatibility, and quality.

User-Centric Design
Axon-R is designed for safety and comfort, suitable for various medical conditions, positions, and locations.

Lab-Grade Signal Quality
Ensuring quality and consistency that includes a built-in impedance check across all Cognixion channels.

BCI Studio

With robust software support, comprehensive documentation, and tutorial videos, our platform minimizes setup time and simplifies use. Unlock customization potential with advanced features — all with minimal programming required

API-Based Configurator JSON/REST API-based configuration using Postman or Python

LSL Stream LSL streams with raw, filtered, and classified data for easy integration

Impedance Check Integrated Impedance check to ensure data integrity across all experiments

Expanded Support Support for integration and dataflows with Python, Acqknowledge, Intheon Neuropype, Openvibe, and Unity

BCI Studio

System Specifications

Fully Integrated Wireless BCI + AR with Expanded Whole Body ExG Channels

Specs (3)
Untitled design (2)-1

Want to Learn More?

Add Axon-R to your lab's arsenal

Reserve now to accelerate breakthrough insights and outcomes, powered by Cognixion. We are producing a limited quantity of Axon-R in 2024. Industry leading peers have already begun developing amazing solutions on Axon-R.

Axon-RTM starts shipping in early 2024



Standard

Contact Us8 / $1,000 Deposit Today

Axon-R Standard includes:

- Cognixion One Axon-R with WiFi & Bluetooth
- Indoor Lens
- BCI Studio
- AR Templates
- Online Resources
- 1 Year Limited Warranty

Advanced

Contact Us16 /$1,000 Deposit Today

Axon-R Advanced includes all standard features plus:

- Tinted Outdoor Lens
- Bipolar cable with 8 additional channels

Elite

Contact Us149 /$1,000 Deposit Today

Axon-R Elite includes all Advanced features plus:

- Extended full replacement warranty with expedited shipping

Standard

Advanced

Elite

Hardware

Cognixion One Axon-R with WiFi & Bluetooth
Indoor Lens
Tinted Outdoor Lens
-
Bipolar Cable with 8 Additional Channels for ExG Sensing (ECG, EMG, EOG)
-

Software

BCI Studio
AR Templates
Online Resources

Warranty

1 Year Limited Warranty
Extended Warranty
Full Device Replacement with expedited shipping should you encounter any issue
-
-
**The retention band can produce at least one of visual, audio, or haptic feedback in response to the signal from the sensor. The sensor can be a first sensor. The wearable device can further include a second sensor connected to the retention band. The second sensor can collect vital signs.
